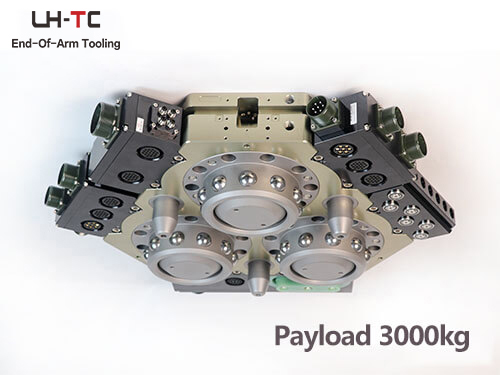

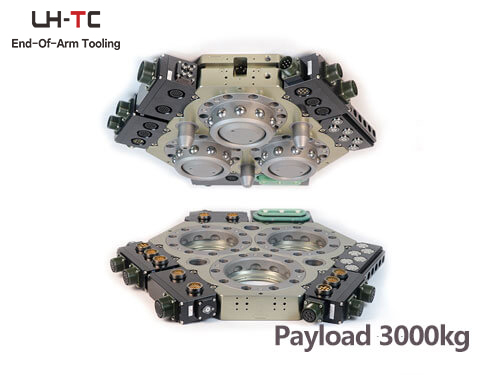

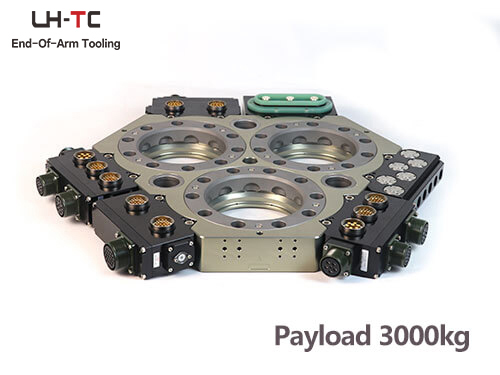

LTC-3000A Automatic Tool Changer
LTC-3000A Automatic Tool Changer LTC-3000A Automatic Tool Changer LTC-3000A Automatic Tool Changer

LTC-3000A Automatic Tool Changer

Model: LTC-3000A

Robot Side PO: 0167

Tool Side PO: 0267

Recommended payload ≤ 3000kg

Locking force: 130200N allowable Moment: 13600N·m (static) allowable torque:13000N·m (static)

4 modules mounting interface

Suitable for spot welding, assembly, handling and other applications

With air pressure loss self-locking function, even if the master plate cut off accidentally, Mater plate and tool plate will not separated.

Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor

SO125, ISO160 standard flange interface

Enquiry Send Email

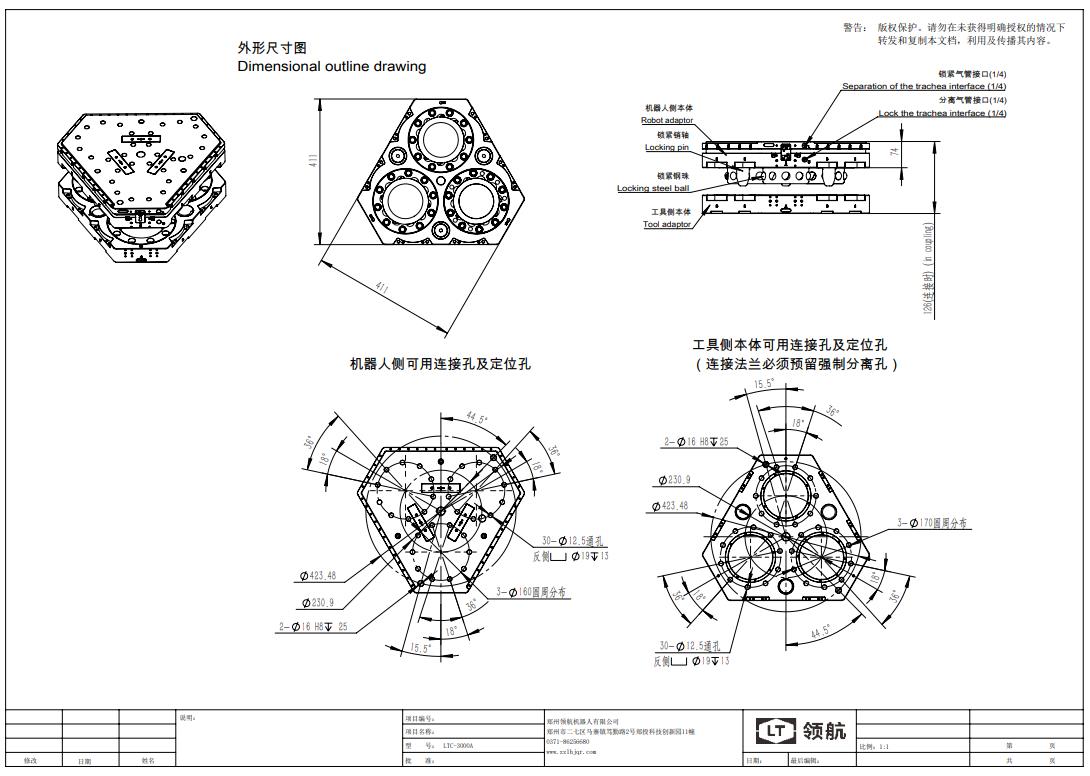

Introduction CAD Drawing Optional Modules
Model Master plate LTC-3000AM
Tool plate LTC-3000AT
Load Payload capacity 3000kg
(when pressure 0.49Mpa）Locking Force 130200N
(Static)Allowable moment 13600N·m
(Static)Allowable torque 13000N·m
Size and precision Housing diameter 411mm
Combined profile 126mm
Position   repeatability ±0.03mm
Air pressure   for working 0.4~0.7Mpa
Locking   mechanism Locking steel  ball
Texture of material Main body   material Aluminum alloy
Locking   mechanism Alloy steel
Environmental Science Temperature 0-60℃
Humidity 0-95%
Weight Master side 39kg
Tool side 19kg

Electrical Module

15 Pins Signal Module
22 Pins Signal Module

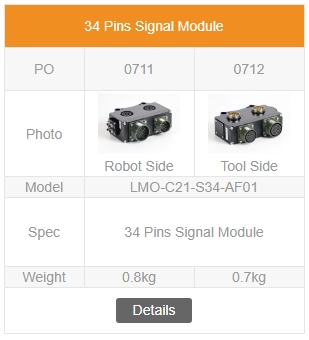

34 Pins Signal Module

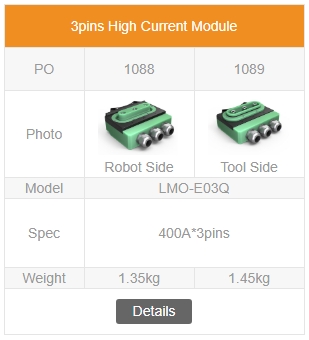

3pins High Current Module
3pins High Current Module
3pins High Current Module

Servo Motor Module

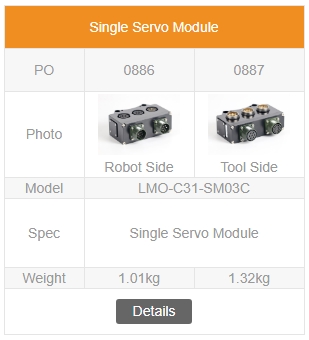

Single Servo Module
Dual Servo Module
ABB Spot Welding Servo Module
Kuka Spot Welding Servo Module
YASKAWA Spot Welding Servo Module
FANUC Spot Welding Servo Module

Fluid&Air Module

11-way Air Supply Module
6-way Air Supply Module (Self Sealing)
5-way Fluid & Air module
Hydraulic Module
4-way Fluid & Air module

Others

Mechanical Safety Stop Assembly
