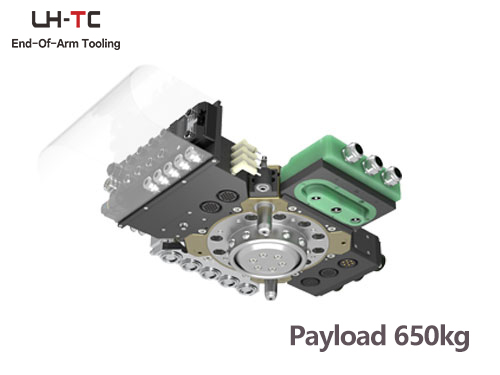

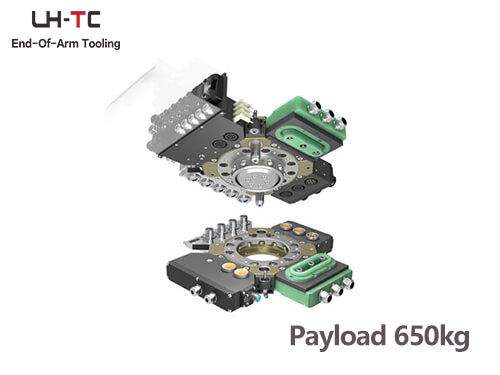

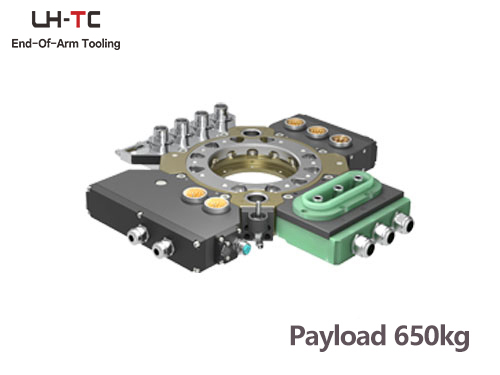

LTC-0630F Automatic Tool Changer

Model: LTC-0630F

Robot Side PO: 0172

Tool Side PO: 0173

Recommended payload ≤ 650kg

Locking force: 72930N allowable Moment: 5000N·m (static) allowable torque: 5000N·m (static)

4 modules mounting interface

Suitable for spot welding, assembly, handling and other applications

With air pressure loss self-locking function, even if the master plate cut off accidentally, Mater plate and tool plate will not separated.

Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor

SO125, ISO160 standard flange interface

Enquiry Send Email

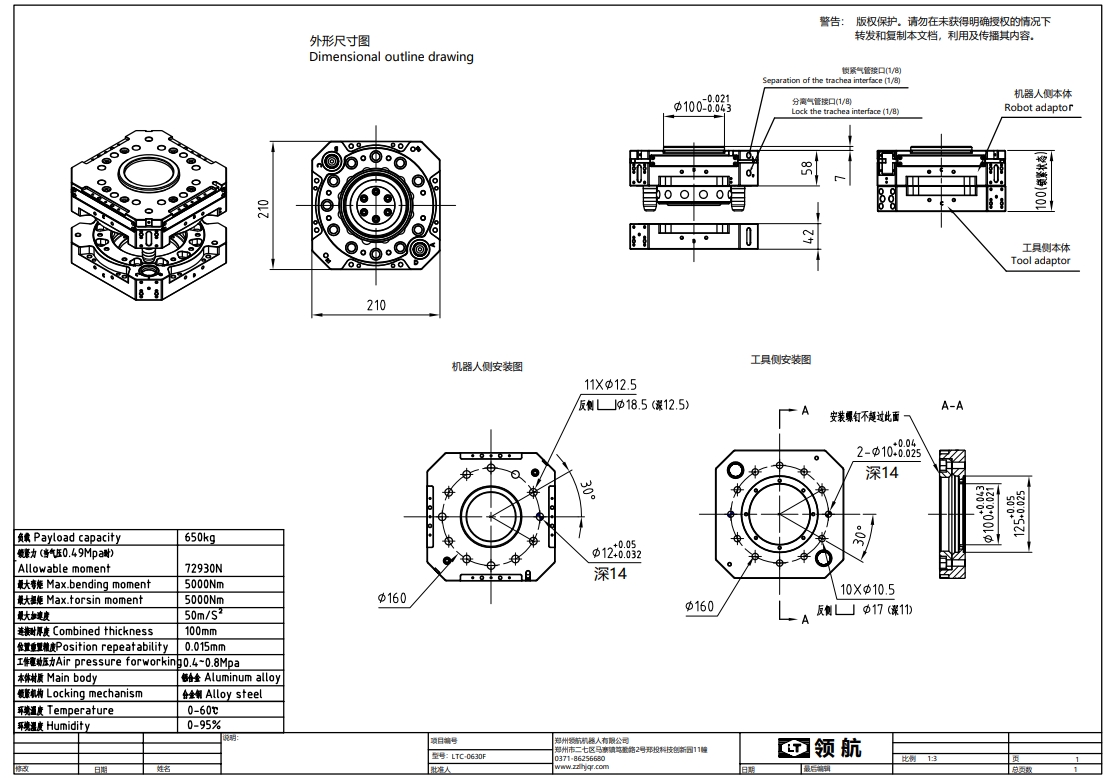

Introduction CAD Drawing Optional Modules

Model	Master plate	LTC-0630FM
Model	Tool plate	LTC-0630FT
Load	Payload capacity	650kg
	(when pressure 0.49Mpa）Locking Force	72930N
	(Static)Allowable moment	5000N·m
	(Static)Allowable torque	5000N·m
Size and precision	Dimension	210mm*210mm
	Combined profile	100mm
	Position repeatability	0.015mm
Air pressure for working		0.4~0.7Mpa
Locking mechanism		Locking steel ball
Texture of material	Main body material	Aluminum alloy
Texture of material	Locking mechanism	Alloy steel
Environmental Science	Temperature	0-60℃
Environmental Science	Humidity	0-95%
Weight	Master side	10.6kg
Weight	Tool side	4.35kg

Sensor

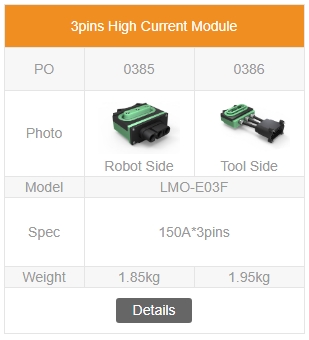

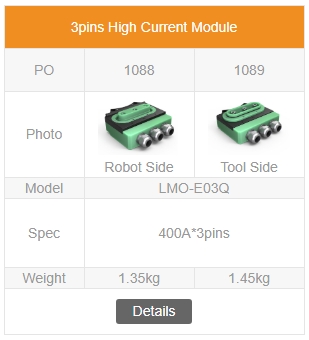

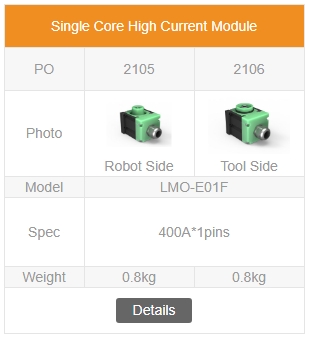

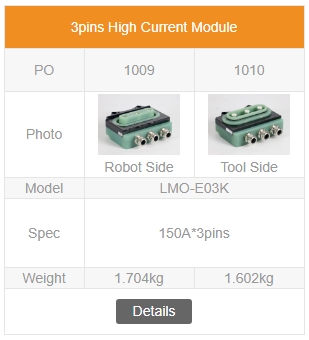

Electrical Module

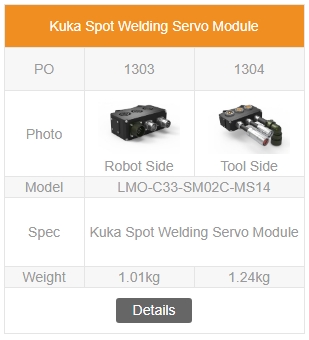

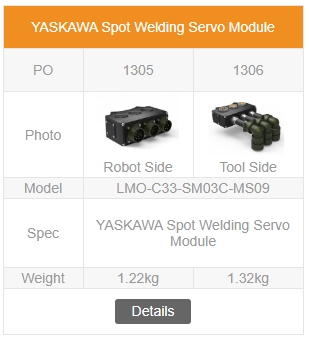

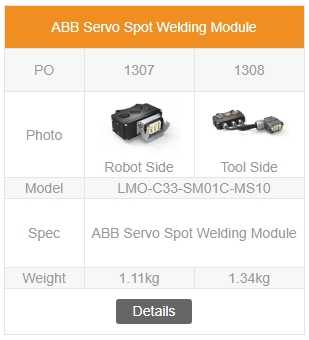

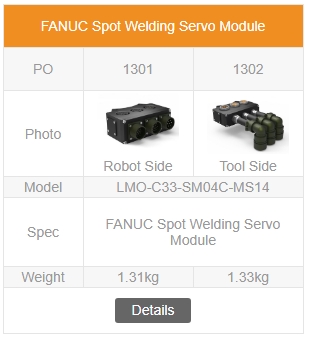

Servo Motor Module

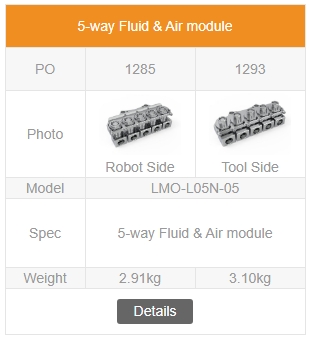

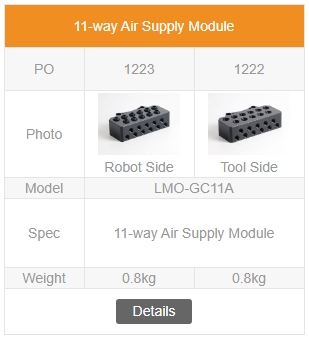

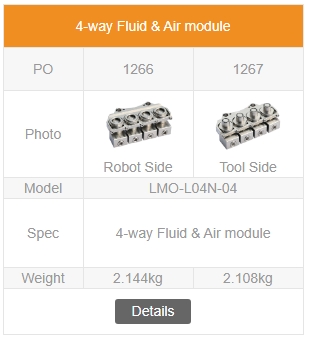

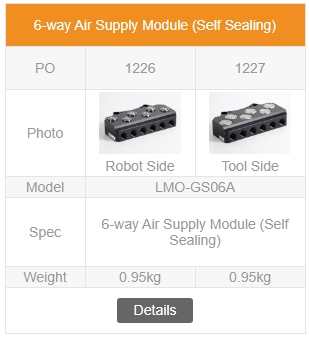

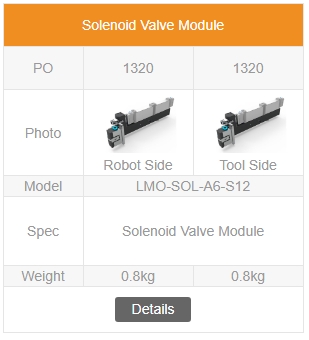

Fluid&Air Module

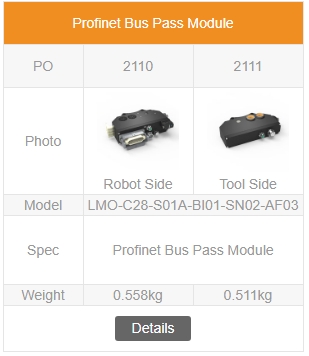

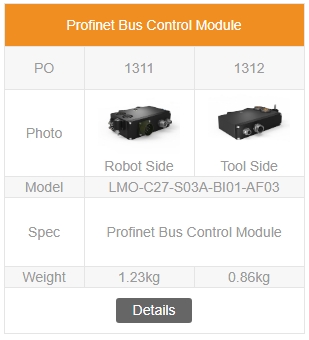

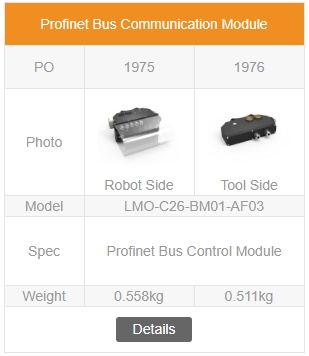

Bus Module

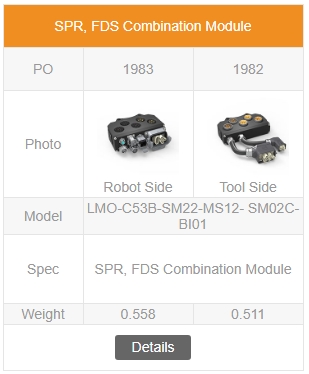

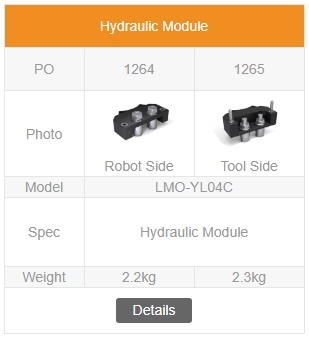

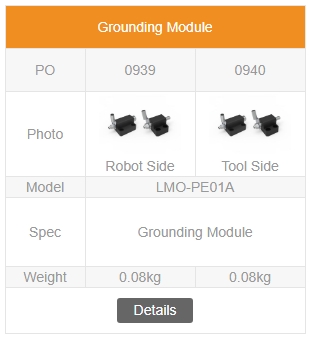

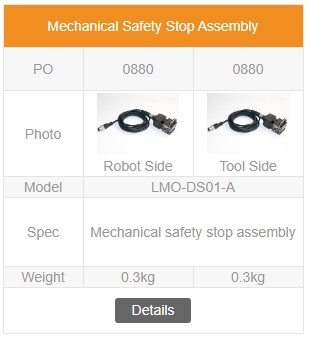

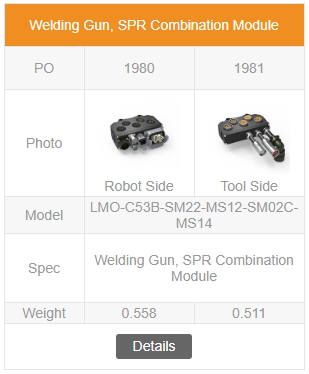

Others
