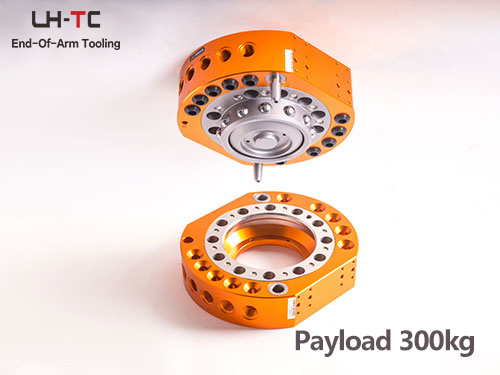

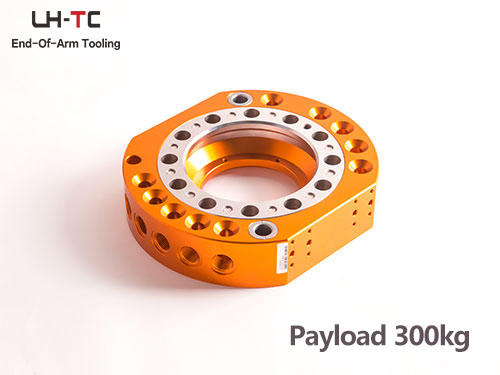

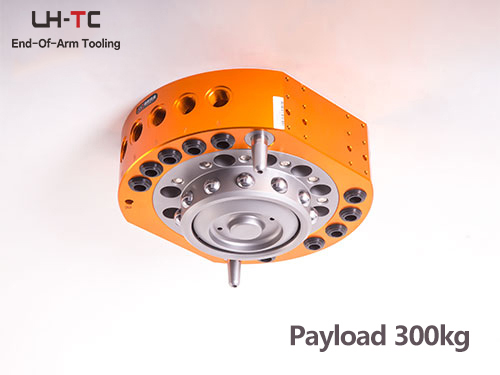

LTC-0300G Automatic Tool Changer
LTC-0300G Automatic Tool Changer LTC-0300G Automatic Tool Changer LTC-0300G Automatic Tool Changer

LTC-0300G Automatic Tool Changer

Model: LTC-0300G

Robot Side PO: 0140 Tool Side PO: 0240

Recommended payload ≤ 300kg

Locking force: 35421N allowable Moment: 2767N·m(static) allowable torque: 2526N·m(static)

10*PT1/8 pneumatic port and 2 modules mounting interface

Suitable for handling, palletizing, welding, grinding, deburring and other applications

With air pressure loss self-locking function, even if the master plate cut off accidentally, Mater plate and tool plate will not separated.

Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor

Enquiry Send Email

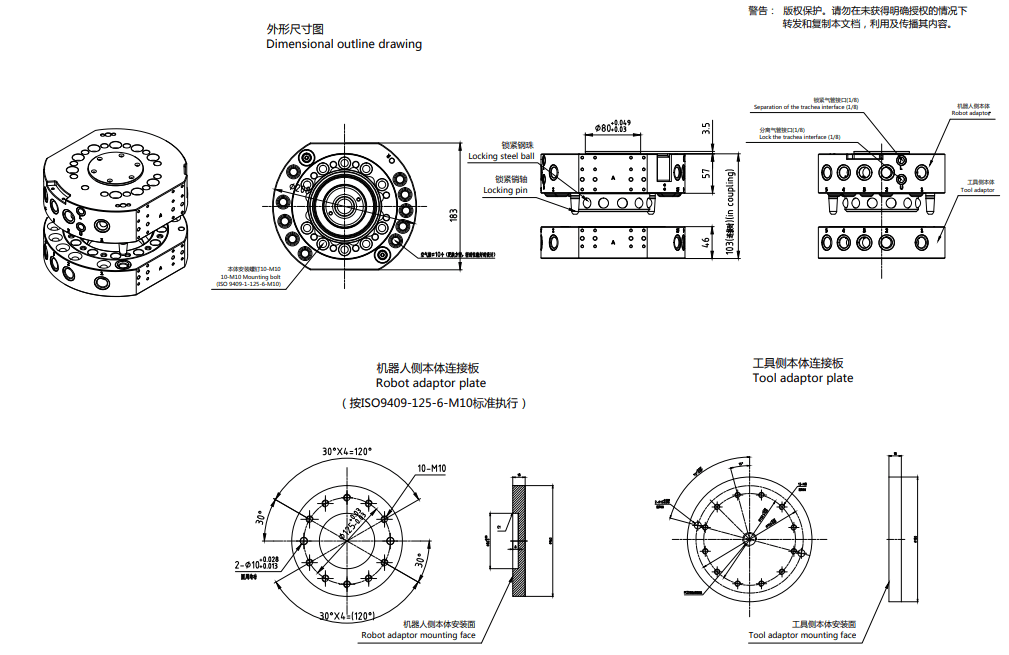

Introduction CAD Drawing Optional Modules
Model Master plate LTC-0300GM
Tool plate LTC-0300GT
load Payload capacity 300kg
(when pressure 0.49Mpa）Locking Force 35421N
(Static)Allowable moment 2767N·m
(Static)Allowable torque 2526N·m
Size and precision Housing diameter φ208mm
Combined profile 103mm
Position   repeatability ±0.02mm
Air pressure   for working 0.4~0.7Mpa
Locking   mechanism Locking steel   ball
Texture of material Main body   material Aluminum alloy
Locking   mechanism Alloy steel
Environmental Science Temperature 0-60℃
Humidity 95%
Weight Master side 6.17kg
Tool side 2.77Kg
Air connector Pneumatic port 10*PT3/8
Max pressure 0.8Mpa



Sensor

Sensor Assembly LMO-P3-01
Sensor Assembly LMO-N3-01

Electrical Module

7 Pins Signal Module

15 Pins Signals Modules

22 Pins Signal Modules

34 Pins Signal Module

48 Pins Signal Module

19 Pins Signal Module (Supplement)

26 Pins Signal Module (Supplement)

38 Pins Signal Module (Supplement)

52 Pins Signal Module (Supplement)

Power Supply + Signal Module

Power Supply + Signal Module

6 Pins Power Supply Module

12 Pins Power Supply Modules

High-Frequency Module

Single Channel Ultrasonic Module

Double Channel Ultrasonic Module

Servo Motor Module

Servo Module

Fluid&Air Module

2-way air supply module
4-way air supply module
6-way air supply module
10-way air supply module
1-way self-sealing air supply module
2-way self-sealing air supply module
3-way Pneumatic Modules (Self Sealing)
4-way self-sealing air supply module
2-way self-sealing air supply module
2-way Liquid Module

Bus Module

Ethernet Bus Module
Ethernet Bus Module
Devicenet Bus Module
Profibus Bus Module
CC-link Bus Module
Gigabit Ethernet Bus Module
Ethernet Bus Module (Supplementary)
Ethernet Bus Module (Supplementary)
Ethernet bus module (RJ45 Interface)
