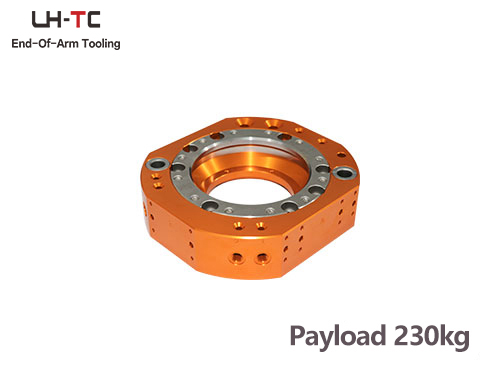

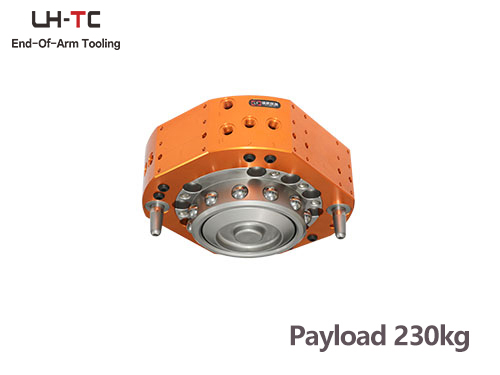

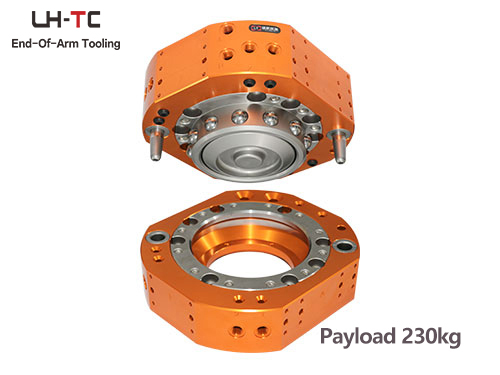

LTC-0200F Automatic Tool Changer
LTC-0200F Automatic Tool Changer LTC-0200F Automatic Tool Changer LTC-0200F Automatic Tool Changer

LTC-0200F Automatic Tool Changer

Model: LTC-0200F

Robot Side PO: 0143 Tool Side PO: 0243

Recommended payload ≤ 230kg

Locking force: 31458N allowable Moment: 2260N·m (static) allowable torque: 2245N·m (static)

6*PT1/8 pneumatic port ,2*PT3/8 pneumatic port, and 4 modules mounting interface

Suitable for handling, palletizing, welding, grinding, deburring and other applications

With air pressure loss self-locking function, even if the air pressure in master plate cut off accidentally, Mater plate and tool plate will not be separate.

Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor.

Enquiry Send Email

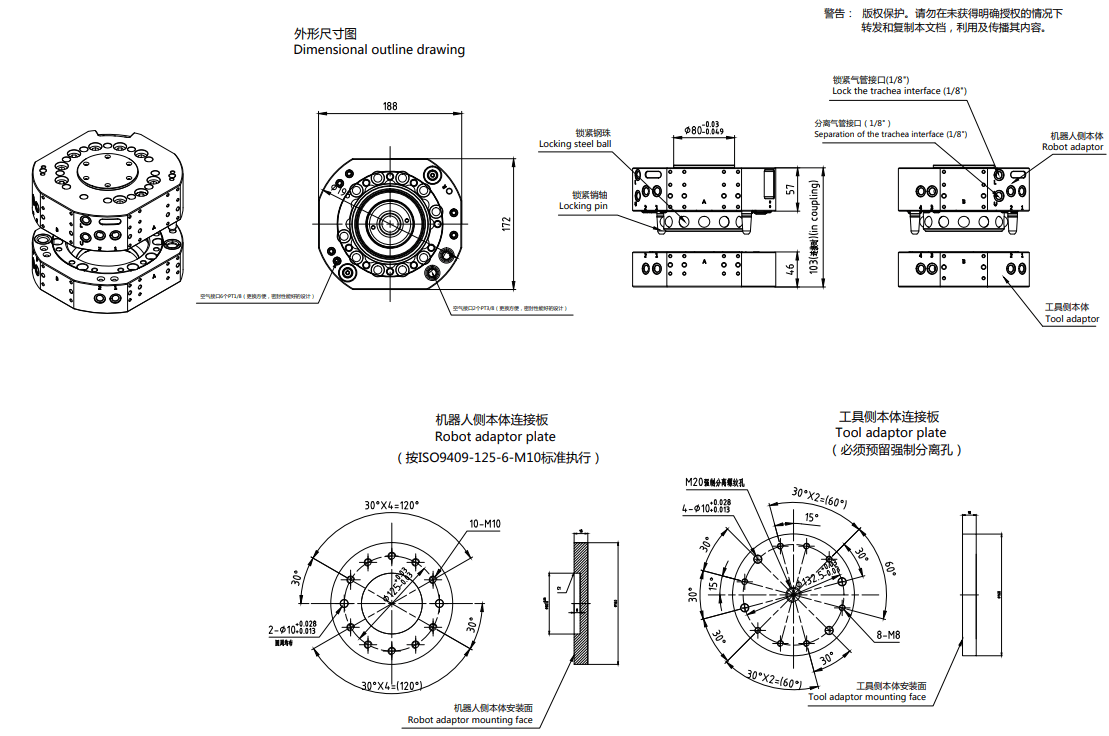

Introduction CAD Drawing Optional Modules
Model Master  plate LTC-0200FM
Tool plate LTC-0200FT
load Payload capacity 230kg
（when pressure 0.49Mpa）Locking Force 31458N
（Static） Allowable moment 2260N·m
（Static） Allowable torque 2245N·m
Size and precision Housing diameter φ198mm
Combined profile 103mm
Position repeatability ±0.02mm
Air pressure   for working 0.4~0.7Mpa
Locking   mechanism Locking steel   ball
Texture of material Main body   material Aluminum alloy
Locking   mechanism Alloy steel
Environmental Science Temperature 0-60℃
Humidity 95%
Weight Master side5.90 5.90kg
Tool side 2.97kg
Air connector Pneumatic port 6 x PT1/8 + 2 x PT3/8
Max pressure 0.8Mpa

Sensor

Sensor Assembly LMO-P3-01
Sensor Assembly LMO-N3-01

Electrical Module

7 Pins Signal Module

15 Pins Signals Modules

22 Pins Signal Modules

34 Pins Signal Module

48 Pins Signal Module

19 Pins Signal Module (Supplement)

26 Pins Signal Module (Supplement)

38 Pins Signal Module (Supplement)

52 Pins Signal Module (Supplement)

Power Supply + Signal Module

Power Supply + Signal Module

6 Pins Power Supply Module

12 Pins Power Supply Modules

High-Frequency Module

Single Channel Ultrasonic Module

Double Channel Ultrasonic Module

Servo Motor Module

Servo Module

Fluid&Air Module

2-way air supply module
4-way air supply module
6-way air supply module
10-way air supply module
1-way self-sealing air supply module
2-way self-sealing air supply module
3-way Pneumatic Modules (Self Sealing)
4-way self-sealing air supply module
2-way self-sealing air supply module
2-way Liquid Module

Bus Module

Ethernet Bus Module
Ethernet Bus Module
Devicenet Bus Module
Profibus Bus Module
CC-link Bus Module
Gigabit Ethernet Bus Module
Ethernet Bus Module (Supplementary)
Ethernet Bus Module (Supplementary)
Ethernet bus module (RJ45 Interface)
