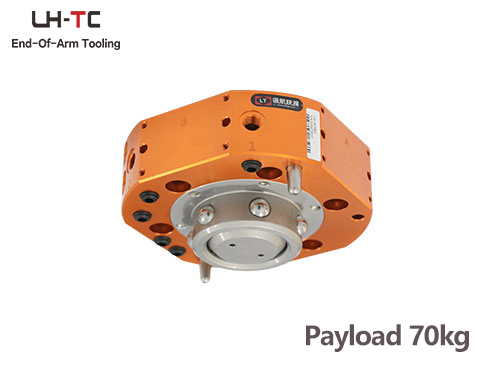

LTC-0070B Automatic Tool Changer

Model: LTC-0070B

Robot Side PO: 0149 Tool Side PO: 0249

Recommended payload ≤ 70kg

Locking force: 9973N allowable Moment: 328.5N·m (static) allowable torque: 451N·m(static)

6*PT1/8 pneumatic port connection and 4 modules mounting interface

Suitable for handling, palletizing, welding, grinding, deburring and other applications

With air pressure loss self-locking function, even if the air pressure in master plate cut off accidentally, Mater plate and tool plate will not be separate.

Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor.

Enquiry Send Email

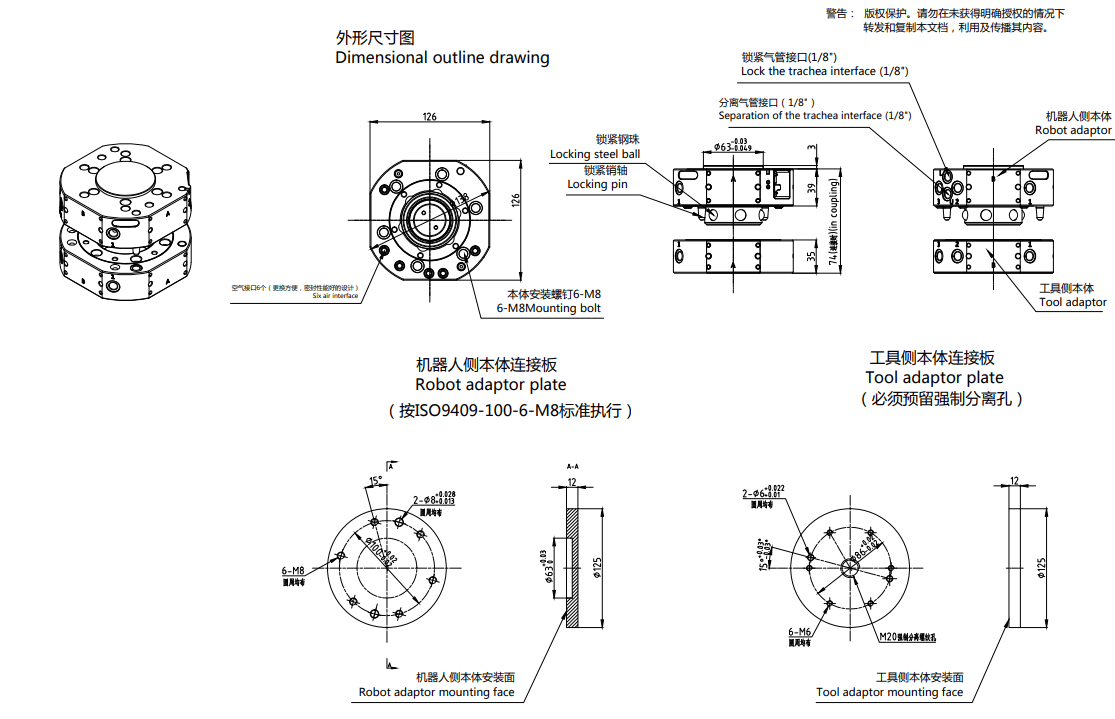

Introduction CAD Drawing Optional Modules

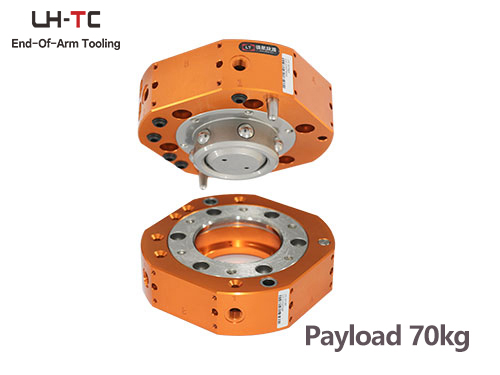

Model	Master plate	LTC-0070BM

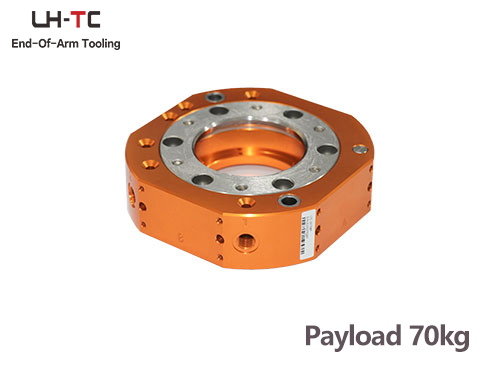

Model	Tool plate	LTC-0070BT
load	Payload capacity	70kg
	（when pressure 0.49Mpa）Locking Force	9973N
	（Static） Allowable moment	328.5N·m
	（Static） Allowable torque	451N·m
Size and precision	Housing diameter	φ138mm
	Combined profile	74mm
	Position repeatability	±0.02mm
Air pressure for working		0.4~0.7Mpa
Locking mechanism		Locking steel ball
Texture of material	Main body material	Aluminum alloy
Texture of material	Locking mechanism	Alloy steel
Environmental Science	Temperature	0-60℃
Environmental Science	Humidity	0-95%
Weight	Master side	1.83kg
Weight	Tool side	1.14kg
Air connector	Pneumatic port	6 x PT1/8
Air connector	Max pressure	0.8Mpa
