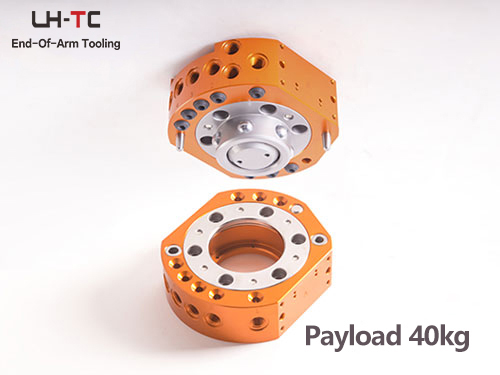

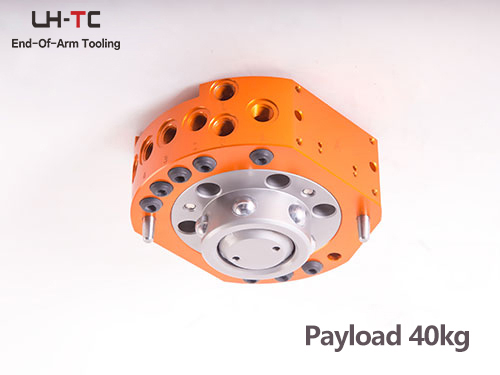

LTC-0040A Automatic Tool Changer

Model: LTC-0040A

Robot Side PO: 0135 Tool Side PO: 0235

Recommended payload ≤ 40kg

Locking force: 7497N allowable Moment: 216N·m (static) allowable torque: 228N·m (static)

8*PT1/8 pneumatic port connection and 2 modules mounting interface

Suitable for handling, palletizing, welding, grinding, deburring and other applications

With air pressure loss self-locking function, even if the air pressure in master plate cut off accidentally, Mater plate and tool plate will not be separate.

Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor.

Enquiry Send Email

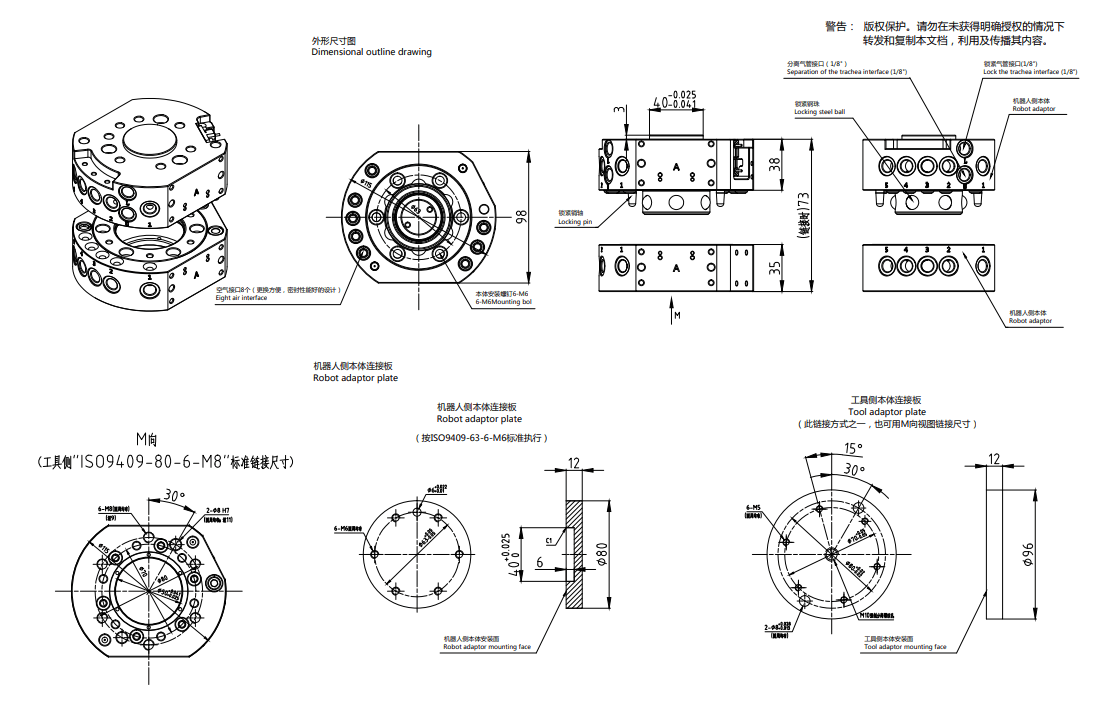

Introduction CAD Drawing Optional Modules

Model	Master plate	LTC-0040AM

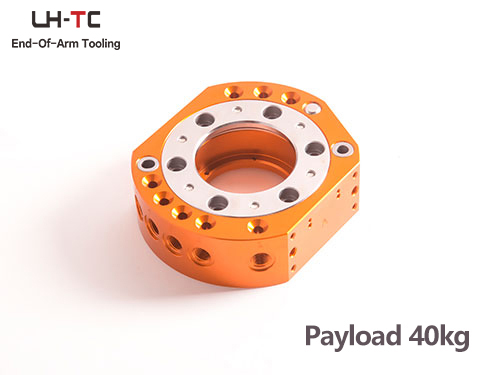

Model	Tool plate	LTC-0040AT
load	Payload capacity	40kg
	（when pressure 0.49Mpa）Locking Force	7497N
	（Static） Allowable moment	216N·m
	（Static） Allowable torque	228N·m
Size and precision	Housing diameter	φ115mm
	Combined profile	73mm
	Position repeatability	±0.02mm
Air pressure for working		0.4~0.7Mpa
Locking mechanism		Locking steel ball
Texture of material	Main body material	Aluminum alloy
Texture of material	Locking mechanism	Alloy steel
Environmental Science	Temperature	0-60℃
Environmental Science	Humidity	0-95%
Weight	Master side	1.28kg
Weight	Tool side	0.8kg
Air connector	Pneumatic port	8 x PT1/8
Air connector	Max pressure	0.8Mpa
