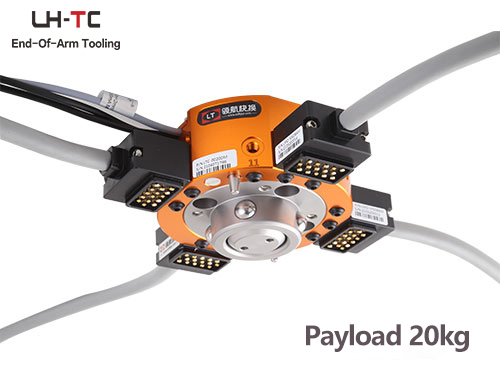

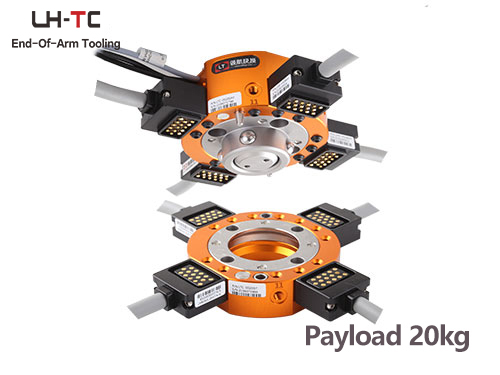

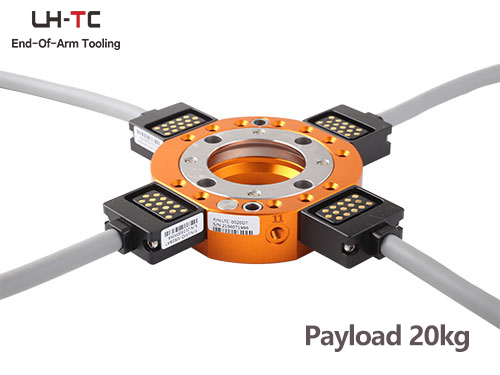

LTC-0020D Automatic Tool Changer

Model: LTC-0020D

Robot Side PO: 0122 Tool Side PO: 0222

Recommended payload ≤ 20kg

Locking force: 2514N allowable Moment: 58.6N·m (static) allowable torque: 80N·m (static)

12*M5 pneumatic port connection and 4 modules expansion mounting surface

Suitable for Assembly, handling, Ultrasonic welding,etc

With air pressure loss self-locking function, even if the air pressure in master plate cut off accidentally, Mater plate and tool plate will not be separate.

Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor

Enquiry Send Email

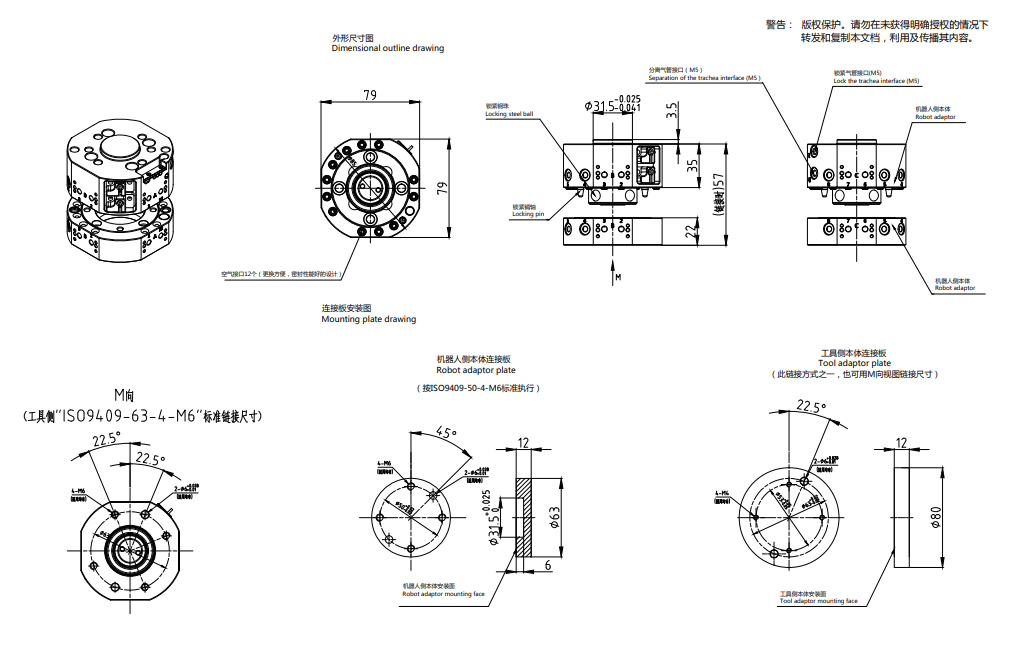

Introduction CAD Drawing Optional Modules

Model	Master plate	LTC-0020DM
Model	Tool plate	LTC-0020DT
load	Payload capacity	20kg
	Locking force（When pressure 0.49Mpa）Locking Force	2514N
	(Static)Allowable moment	58.6N·m
	(Static)Allowable torque	80N·m
Size and precision	Housing diameter	φ85mm
	Combined profile	57mm
	Position repeatability	±0.02mm
Air pressure for working		0.4~0.7Mpa
Locking mechanism		Locking steel ball
Texture of material	Main body material	Aluminum alloy
Texture of material	Locking mechanism	Alloy steel
Environmental Science	Temperature	0-60℃
Environmental Science	Humidity	0-95%
Weight	Master side	0.53kg
Weight	Tool side	0.30kg
Air connector	Pneumatic port	12 x M5
Air connector	Max pressure	0.8Mpa
