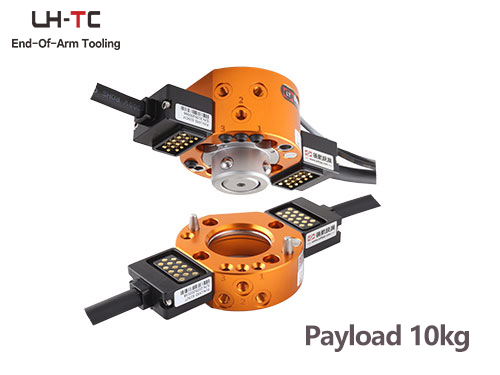

LTC-0010E Automatic Tool Changer

Model: LTC-0010E

Robot Side PO: 0145 Tool Side PO: 0245

Recommended payload ≤ 10kg

Locking force: 1193N allowable Moment: 26.5N·m (static) allowable torque: 35.7N·m(static)

4*M5 Pneumatic port connection and 2 modules mounting interface

Suitable for Assembly, handling, etc

With air pressure loss self-locking function, even if the air pressure in master plate cut off accidentally, Mater plate and tool plate will not be separate.

Standard configuration: Master plate lock/unlock sensor, tool plate in position detection sensor

Enquiry Send Email

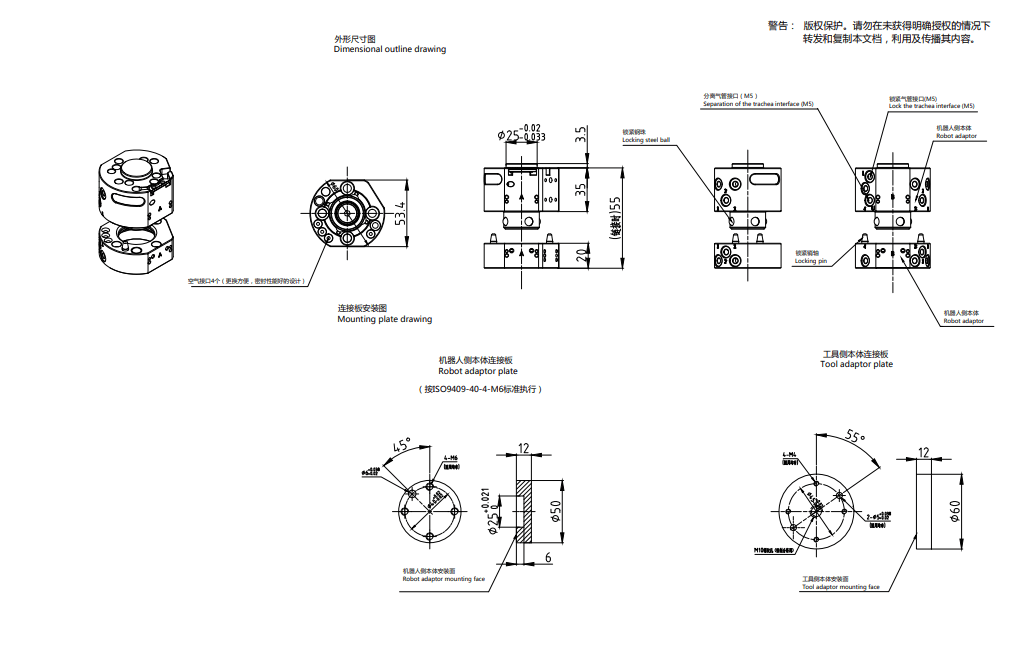

Introduction CAD Drawing Optional Modules

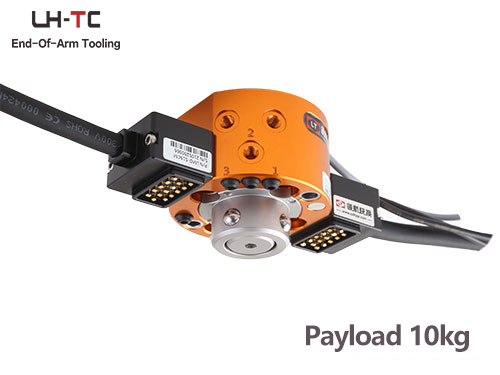

Model	Master plate	LTC-0010EM

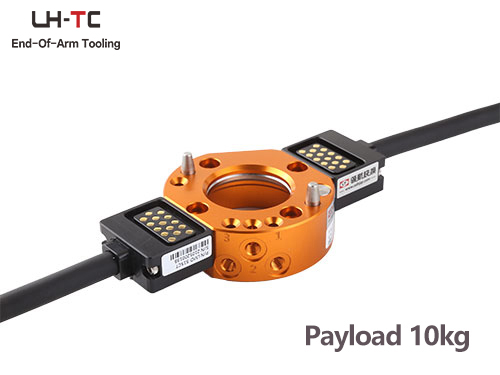

Model	Tool plate	LTC-0010ET
load	Payload capacity	10kg
	（when pressure 0.49Mpa）Locking Force	1193N
	(static)Allowable moment	26.5N·m
	(static)Allowable torque	35.7N·m
Size and precision	Housing diameter	φ60mm
	Combined profile	55mm
	Position repeatability	±0.02mm
Air pressure for working		0.4~0.7Mpa
Locking mechanism		Locking steel ball
Texture of material	Main body material	Aluminum alloy
Texture of material	Locking mechanism	Alloy steel
Environmental Science	Temperature	0-60℃
Environmental Science	Humidity	0-95%
Weight	Master side	0.33kg
Weight	Tool side	0.09kg
Air connector	Pneumatic port	4 x M5
Air connector	Max pressure	0.8Mpa
