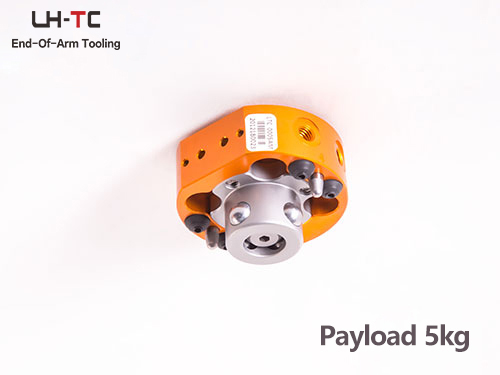

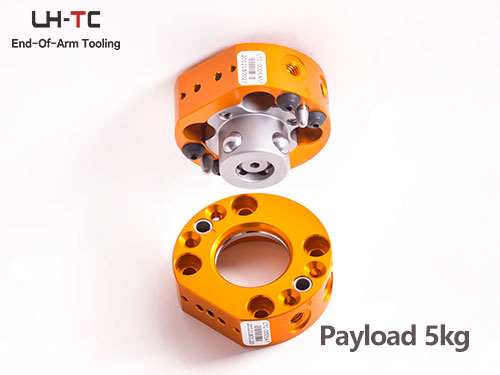

LTC-0005A Automatic Tool Changer

Model: LTC-0005A

Robot Side PO: 0120 Tool Side PO: 0220

Recommended payload ≤ 5kg

Locking force: 770N Allowable moment: 13.2N·m (static) Allowable torque: 18N·m (static)

4*M5 Pneumatic port connection and 1 module mounting interface

Suitable for Assembly, handling, etc

With air pressure loss self-locking function, even if the air pressure in master plate cut off accidentally, Mater plate and tool plate will not be separate.

Enquiry Send Email

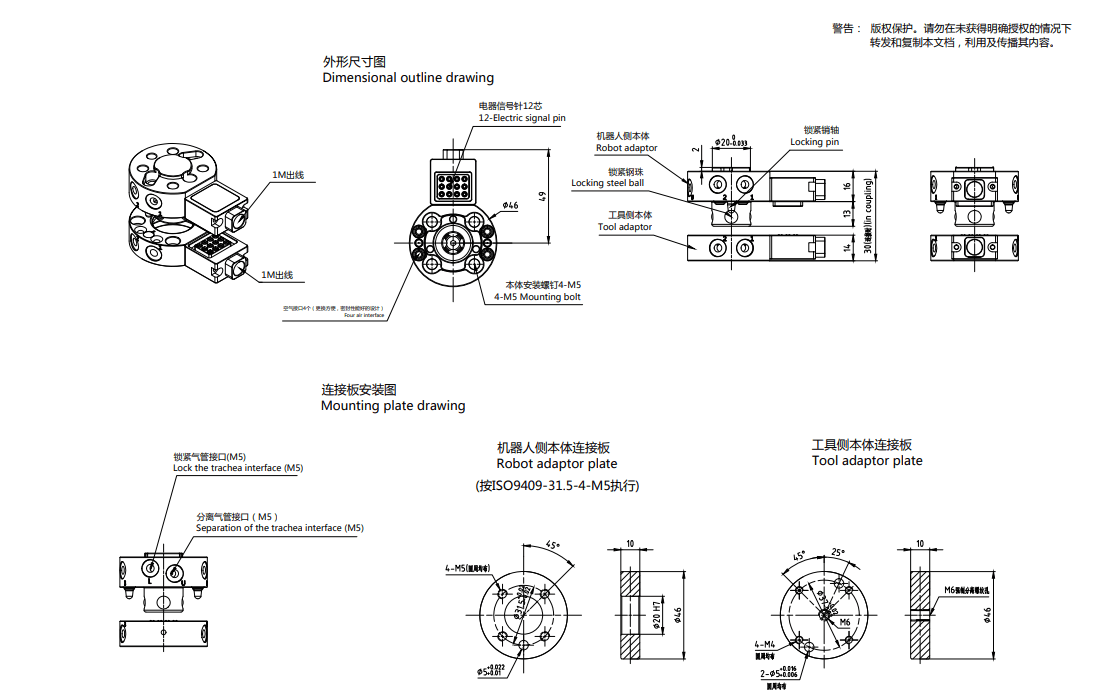

Introduction CAD Drawing Optional Modules

Model	Master plate	LTC-0005AM
Model	Tool plate	LTC-0005AT
load	Payload capacity	5kg
	（when pressure 0.49Mpa）Locking Force	770N
	（Static）Allowable moment	13.2N·m
	（Static）Allowable torque	18N·m
Size and precision	Housing diameter	φ46mm
	Combined profile	30mm
	Position repeatability	±0.015mm
Air pressure for working		0.4~0.7Mpa
Locking mechanism		Locking steel ball
Texture of material	Main body material	Aluminum alloy
Texture of material	Locking mechanism	Alloy steel
Environmental Science	Temperature	0-60℃
Environmental Science	Humidity	95%
Weight	Master side	0.11kg
Weight	Tool side	0.04kg
Air connector	Pneumatic port	4 x M5
Air connector	Max pressure	0.8Mpa

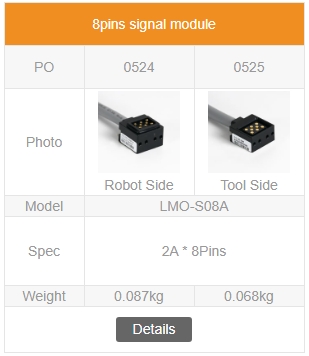

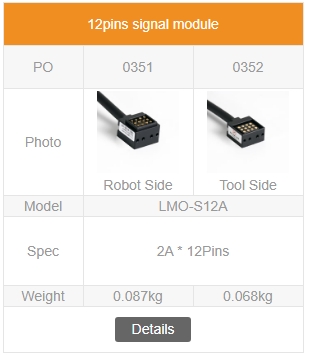

Electrical Module
